Type 5/3

5/3 T 3%
Frequency (Hz)Cavity MountSurface Mount
1000.260.08
1250.340.13
1600.510.26
2000.780.56
2500.770.72
3150.870.98
4000.811.07
5000.741.00
6300.690.87
8000.630.67
10000.610.55
12500.480.44
16000.410.39
20000.360.34
25000.350.33
31500.330.32
40000.310.31
50000.350.36
5/3 M 12%
Frequency (Hz)Cavity MountSurface Mount
1000.250.08
1250.310.13
1600.450.25
2000.770.37
2500.760.61
3150.920.79
4000.950.91
5000.951.06
6300.881.03
8000.91.05
10000.931.04
12500.930.96
16000.920.91
20000.910.85
25000.840.81
31500.790.78
40000.80.79
50000.80.82
5/3 M 19%
Frequency (Hz)Cavity MountSurface Mount
1000.280.10
1250.310.10
1600.470.18
2000.610.33
2500.760.54
3151.060.76
4000.991.02
5000.981.12
6300.961.11
8000.901.08
10001.020.99
12501.041.02
16001.020.98
20000.960.97
25000.890.96
31500.900.90
40000.840.83
50000.810.82
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 8/3" tab_id="e009f7f1-ad30-8" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 8/3

8/3 M 19%
Frequency (Hz)Cavity MountSurface Mount
1000.460.08
1250.520.13
1600.620.21
2000.880.28
2500.860.41
3150.930.57
4000.940.76
5001.010.93
6301.021.01
8001.021.06
10001.071.11
12501.081.07
16001.061.04
20001.041.02
25001.000.97
31501.010.99
40001.000.90
50000.970.90
8/3 M 9.5%
Frequency (Hz)Cavity MountSurface Mount
1000.490.12
1250.630.17
1600.700.27
2000.910.40
2500.880.52
3150.920.73
4000.980.98
5000.951.09
6300.941.13
8000.971.10
10001.061.03
12501.000.90
16000.900.82
20000.800.77
25000.770.71
31500.740.72
40000.750.70
50000.780.70
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 6/2" tab_id="1446681692635-2-0" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 6/2

6/2 M 7%
Frequency (Hz)Cavity MountSurface Mount
1000.30.07
1250.370.09
1600.420.17
2000.760.33
2500.840.57
3150.940.77
4000.980.97
5000.981.06
6300.951.08
8000.911.11
10000.971.03
12500.970.9
16000.90.82
20000.840.78
25000.750.72
31500.710.69
40000.740.72
50000.670.77
6/2 T
Frequency (Hz)Cavity MountSurface Mount
1000.280.08
1250.390.14
1600.530.25
2000.80.57
2500.770.75
3150.861.02
4000.781.08
5000.690.94
6300.630.79
8000.580.59
10000.530.49
12500.40.38
16000.350.34
20000.30.3
25000.290.28
31500.280.28
40000.260.28
50000.290.31
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 9/2" tab_id="1446682489478-3-0" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 9/2

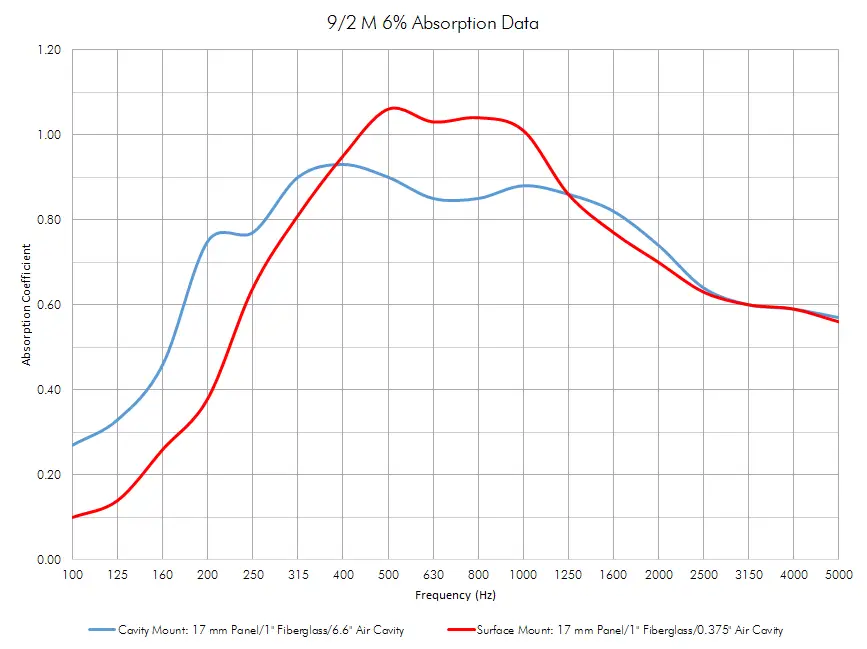

9/2 M 6%
Frequency (Hz)Cavity MountSurface Mount
1000.270.10
1250.330.14
1600.460.26
2000.750.38
2500.770.64
3150.900.81
4000.930.95
5000.901.06
6300.851.03
8000.851.04
10000.881.01
12500.860.86
16000.820.77
20000.740.70
25000.640.63
31500.600.60
40000.590.59
50000.570.56

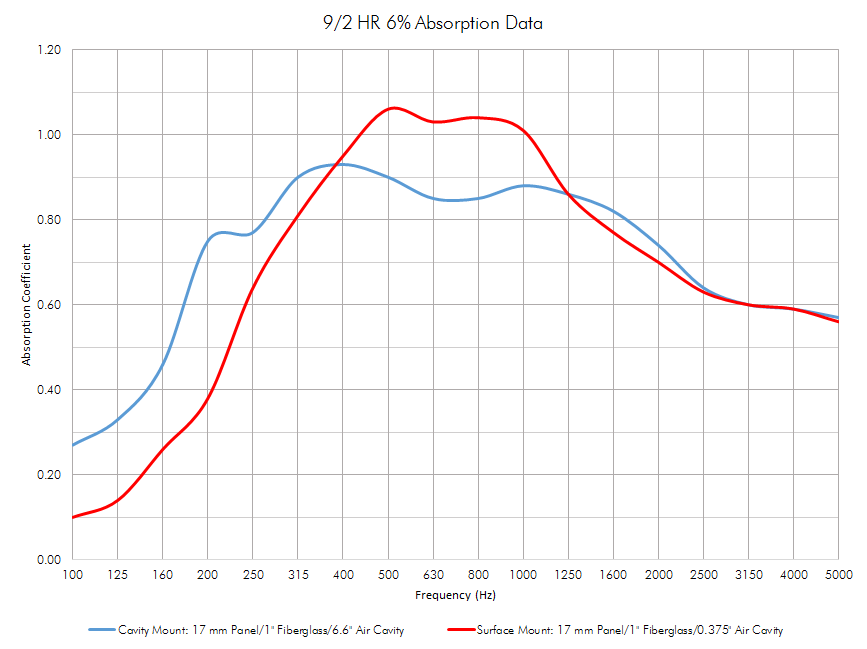

9/2 HR 6%
Frequency (Hz)Cavity MountSurface Mount
1000.270.10
1250.330.14
1600.460.26
2000.750.38
2500.770.64
3150.900.81
4000.930.95
5000.901.06
6300.851.03
8000.851.04
10000.881.01
12500.860.86
16000.820.77
20000.740.70
25000.640.63
31500.600.60
40000.590.59
50000.570.56
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 12/4" tab_id="1446688172482-4-3" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 12/4

12/4 M 12%
Frequency (Hz)Cavity MountSurface Mount
1000.270.09
1250.300.13
1600.480.25
2000.740.36
2500.750.62
3150.890.77
4000.930.89
5000.911.02
6300.851.01
8000.861.04
10000.891.00
12500.910.91
16000.900.88
20000.840.80
25000.780.75
31500.740.72
40000.730.73
50000.730.78
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 13/3" tab_id="1446747255235-5-9" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 13/3

13/3 M 12%
Frequency (Hz)Cavity MountSurface Mount
1000.290.04
1250.340.11
1600.450.26
2000.630.35
2500.830.40
3151.010.62
4000.980.86
5000.901.04
6300.901.18
8000.881.12
10000.991.12
12500.900.95
16000.870.92
20000.720.97
25000.630.81
31500.600.69
40000.590.63
50000.520.52
13/3 M 6%
Frequency (Hz)Cavity MountSurface Mount
1000.330.12
1250.360.15
1600.460.30
2000.700.44
2500.710.69
3150.800.83
4000.830.93
5000.770.98
6300.760.92
8000.740.93
10000.760.83
12500.720.73
16000.660.64
20000.590.55
25000.520.50
31500.490.49
40000.510.47
50000.510.50
13/3 T 3%
Frequency (Hz)Cavity MountSurface Mount
1000.280.09
1250.400.14
1600.510.26
2000.780.57
2500.750.73
3150.860.98
4000.781.05
5000.690.95
6300.650.81
8000.590.62
10000.550.51
12500.410.39
16000.340.33
20000.290.27
25000.260.25
31500.230.23
40000.210.22
50000.220.23
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 14/2" tab_id="1446747609567-6-3" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 14/2

14/2 M 7%
Frequency (Hz)Cavity MountSurface Mount
1000.470.08
1250.780.12
1600.790.24
2000.920.35
2500.880.60
3150.900.77
4000.920.91
5000.901.05
6300.901.05
8000.921.06
10000.931.03
12500.990.92
16000.960.87
20000.910.79
25000.880.72
31500.860.65
40000.790.61
50000.670.50
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 28/4" tab_id="1446747791834-7-5" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 28/4

28/4 M 7.5%
Frequency (Hz)Cavity MountSurface Mount
1000.320.07
1250.650.17
1600.750.22
2000.690.32
2500.940.48
3151.080.66
4001.090.86
5000.941.03
6300.811.06
8000.711.01
10000.730.88
12500.680.71
16000.590.56
20000.510.47
25000.450.44
31500.440.44
40000.430.41
50000.480.50
28/4 T 1.4%
Frequency (Hz)Cavity MountSurface Mount
1000.360.12
1250.510.15
1600.510.26
2000.620.48
2500.660.73
3150.750.84
4000.780.91
5000.730.85
6300.710.84
8000.660.78
10000.680.70
12500.590.57
16000.520.50
20000.460.46
25000.400.41
31500.390.39
40000.400.45
50000.440.54
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 29/3" tab_id="1447003311354-8-2" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 29/3

30/2 M 3.5%
Frequency (Hz)Cavity MountSurface Mount
1000.360.10
1250.510.13
1600.480.23
2000.660.44
2500.700.72
3150.810.88
4000.830.99
5000.790.96
6300.740.90
8000.700.85
10000.740.75
12500.640.61
16000.550.50
20000.490.45
25000.430.40
31500.380.39
40000.410.41
50000.410.43
[/TS_VCSC_Fancy_Tabs_Single][TS_VCSC_Fancy_Tabs_Single customize="true" color_tab="#969696" hover_tab="#707070" title="Type 30/2" tab_id="1447214170654-9-10" padding="padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;"]

Type 30/2

30/2 M 3.5%
Frequency (Hz)Cavity MountSurface Mount
1000.360.10
1250.510.13
1600.480.23
2000.660.44
2500.700.72
3150.810.88
4000.830.99
5000.790.96
6300.740.90
8000.700.85
10000.740.75
12500.640.61
16000.550.50
20000.490.45
25000.430.40
31500.380.39
40000.410.41
50000.410.43
